Branches on Xata are isolated PostgreSQL databases that give you separate environments for development, testing, and previews. Xata uses Copy-on-Write (CoW) at the storage layer to create branches instantly: a child branch contains the exact schema and data of its parent at the moment of creation, regardless of database size. After creation, branches are independent PostgreSQL instances. Changes made in one branch — to the schema or the data — do not affect any other branch. There is no replication between branches, so writing to one branch never shows up in another. Typical use cases include development branches for pull requests, preview databases, ephemeral CI environments, ad-hoc testing against production-like data, and “freezing” data at a point in time.

​
Base and child branches

Every branch in a project is either a base branch or a child branch: When you create your first branch in a project, the console suggests the name main. This is a naming convention only — main is not a special or default branch, and any branch can be the parent of a child branch. Branches can be nested: a child branch can itself have children, forming a branch tree.
Each branch runs on its own compute instance, billed by instance type for the time it runs. Scale-to-zero pauses compute on idle branches, which makes development branches cheap to keep around. See Costs and limits.
A branch’s region is fixed at creation. Child branches always run in the same region as their parent. To move to a different region, create a new base branch in the target region and copy your data over with xata clone.

​
Create a branch

​
Create a child branch

Creating a child branch copies the parent’s schema and data using a Copy-on-Write storage snapshot, so it completes in seconds even for terabyte-scale databases.
1
Navigate to the Branches page in your project
2
Click New branch
3
Select the source (parent) branch
4
Give the branch a name
5
Optionally adjust the scale-to-zero settings
6
Click Create branch
A few things to know about child branches:
  • The branch starts with a single primary instance and no read replicas, regardless of how many replicas the parent has. You can add replicas later in the branch settings.
  • The branch is a point-in-time copy. Changes made to the parent after creation do not appear in the child, and vice versa.
  • If the parent contains sensitive production data, so does the child. For development environments, consider branching from an anonymized staging replica instead of production.

​
Create a base branch

A base branch has no parent and starts empty — no schema, no data. Use it for a new production database, a staging environment in a specific region, or as the root of a new branch tree.
1
Navigate to the Branches page and click New branch
2
Give the branch a name
3
Select a region
4
Choose the PostgreSQL image, instance type, and number of replicas
5
Optionally adjust the scale-to-zero settings
6
Click Create branch

​
Connect to a branch

Each branch has its own connection string and credentials. When connecting, you choose an endpoint type that controls how traffic is routed within the branch: To get a connection string, open the branch’s Connect panel in the console, or use the CLI:
Store connection strings as secrets — each one contains the branch’s credentials. For endpoint details and connection examples for psql, Prisma, Drizzle, and other clients, see the branch reference.

​
View branches

The Branches page in the console shows all branches in your project, either as a list or as a graph visualizing the parent/child hierarchy, along with each branch’s region and creation time. From the CLI:

​
Manage a branch

Each branch has its own Settings page where you can rename the branch, change the instance type, add or remove read replicas, increase storage, upgrade the PostgreSQL minor version, tune PostgreSQL parameters, and rotate credentials. See the branch reference for details on each setting.

​
Scale development branches to zero

Branches that only see occasional use — dev branches, PR previews, staging — don’t need to run around the clock. With scale-to-zero, a branch automatically hibernates after a configurable inactivity period (15 minutes to 3 hours) and wakes automatically when a new connection arrives. While hibernated, the branch’s data is retained but no compute is billed. Scale-to-zero is configured per branch, and your project defines separate defaults for base branches and child branches, so development branches can default to aggressive hibernation while production stays always-on.

​
Delete a branch

Deleting a branch permanently removes the branch and its data. This cannot be undone.
1
Navigate to the Branches page
2
Open the actions menu (”…”) next to the branch
3
Select Delete
4
Type the branch name to confirm the deletion
Development branches are billed for the time they run, so delete branches you no longer need — or let scale-to-zero pause them automatically.

​
Branching workflows

Dev branches for pull requests

Connect the Xata GitHub App to create a dedicated dev branch for every pull request, and clean it up when the PR closes.

Branch automation in CI

Use GitHub Actions to create branches, apply migrations, and wire preview environments to a branch connection string.

Anonymized production clones

Clone production into a staging branch with PII anonymized on the fly, then create instant dev branches from it.

Test schema changes safely

Try a migration on a child branch first, then apply the same migration to production with zero downtime using pgroll.
Branches do not merge or synchronize schema changes with each other. The workflow is: test the migration on a child branch, then apply the same migration separately to the target branch — manually or through CI. See schema changes.

​
How Copy-on-Write branching works

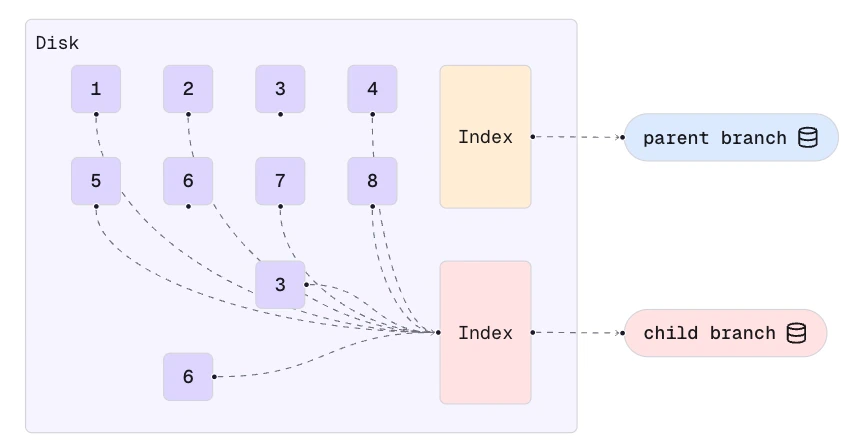

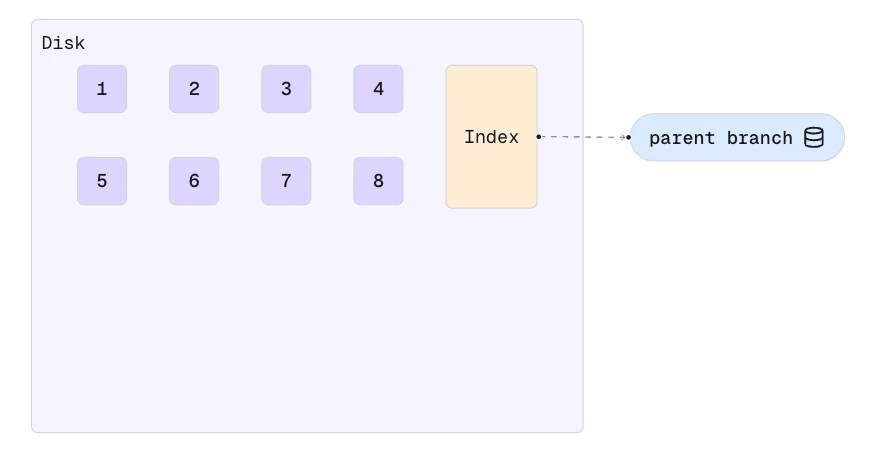

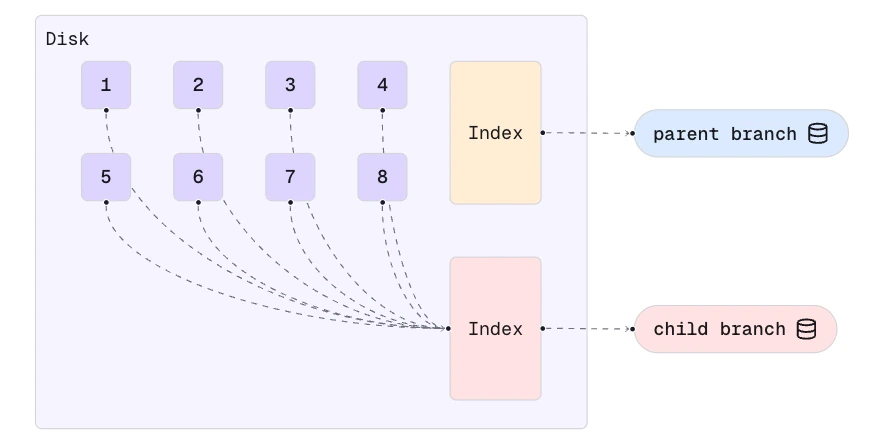

When a branching operation starts, Xata creates a Copy-on-Write snapshot of the underlying logical volume at the storage level, and starts a new PostgreSQL instance on a volume initialized from that snapshot. Because the mechanism lives entirely below PostgreSQL, Xata doesn’t require any modifications to the PostgreSQL source code — branches run vanilla Postgres. In generic terms, Copy-on-Write is a mechanism used to share data efficiently between processes. Instead of copying data right away when multiple programs use it, the same data is shared between programs until one tries to modify it. When stored on disk, the database volume is split into blocks. In the illustration below, the blocks are numbered from 1 to 8. Because we’re using a distributed storage system, the blocks can be on different disks and nodes. A metadata index is used to keep track of where the data blocks are stored. Copy-on-Write branching — initial state When the Copy-on-Write volume snapshot is created, and the child database branch started from this snapshot, a new index is created. However, no data blocks are copied at this point; the index simply points to the original data blocks. This makes the snapshot instant, regardless of how large the database is. Copy-on-Write branching — new branch created After the branch is created, whenever writes are received by a data block — either by the child or the parent branch — that particular block is first copied. In the illustration below, this has happened for blocks 3 and 6. When a block diverges like this, the index from each branch references its own private copy of it. Copy-on-Write branching — blocks diverging after writes Only the blocks that are modified need to be copied, which results in significant I/O and storage savings compared to a full copy.

​
Costs and limits

  • Each running branch has its own compute instance, billed hourly by instance type. Scale-to-zero eliminates compute costs while a branch is idle.
  • Copy-on-Write shares unchanged storage blocks between a parent and its children, so creating a branch does not duplicate the parent’s storage.
  • The number of branches per project and the branch creation rate depend on your plan. If you hit a limit, contact support.

​
Behavior and limitations

  • Do changes in the parent appear in a child branch? No. A child is a point-in-time copy; there is no replication between branches after creation.
  • Can I merge branches? No. Schema changes are promoted by applying the same migration to each branch, manually or via CI.
  • Can I reset a child branch from its parent? Not in place. Delete the branch and create a fresh one from the parent to get a new point-in-time copy.
  • Is main special? No. It’s the conventional name for the first branch, but Xata has no default-branch or promotion concept — any branch can be a parent.
  • Can I change a branch’s region? No. Region is fixed at creation, and child branches always live in the parent’s region. Create a new base branch and clone your data to move regions.
