Vercel creates a preview deployment for each Git branch. The Xata GitHub App creates a Xata branch for each pull request and gives it the same name as the pull request’s source branch. You can use that shared branch name to connect every Vercel preview deployment to its matching Xata branch. Vercel exposes the Git branch as VERCEL_GIT_COMMIT_REF, and a custom build script passes it to xata branch url to retrieve the connection string. This guide uses Next.js as an example. If you use another framework or package manager, adapt the environment file and build commands to your application.

​
How it works

  1. You push a Git branch and open a pull request.
  2. The Xata GitHub App creates a Xata branch named after the pull request’s source branch.
  3. Subsequent pushes reuse that Xata branch. The GitHub App does not recreate or refresh it on every push.
  4. During each preview build, Vercel sets VERCEL_GIT_COMMIT_REF to that same branch name.
  5. The build script retrieves the Xata branch’s connection string and makes it available to the application as DATABASE_URL.
  6. When the pull request closes, the Xata GitHub App deletes the Xata branch.

​
Prerequisites

This guide uses the Xata GitHub App to manage the branch lifecycle. You can use the GitHub Actions pull request workflow instead, but its example names branches <source-branch>_<pull-request-number>. Adjust the branch name in the Vercel script to match your workflow.

​
Create an API key for Vercel

The Vercel build uses the Xata CLI to find the preview branch and retrieve its connection string. Create a dedicated API key for this automation:
  1. Open User API keys in the Xata Console.
  2. Click New API Key.
  3. Give the key a descriptive name, such as Vercel preview deployments, and choose an appropriate expiration.
  4. Under Projects & Branches, select the Xata project linked to the repository. Select the project rather than an individual branch so the key can access preview branches created later.
  5. Enable Access control and select the CI/CD deploy bot preset.
  6. Create the key and copy it. The full value is shown only once.

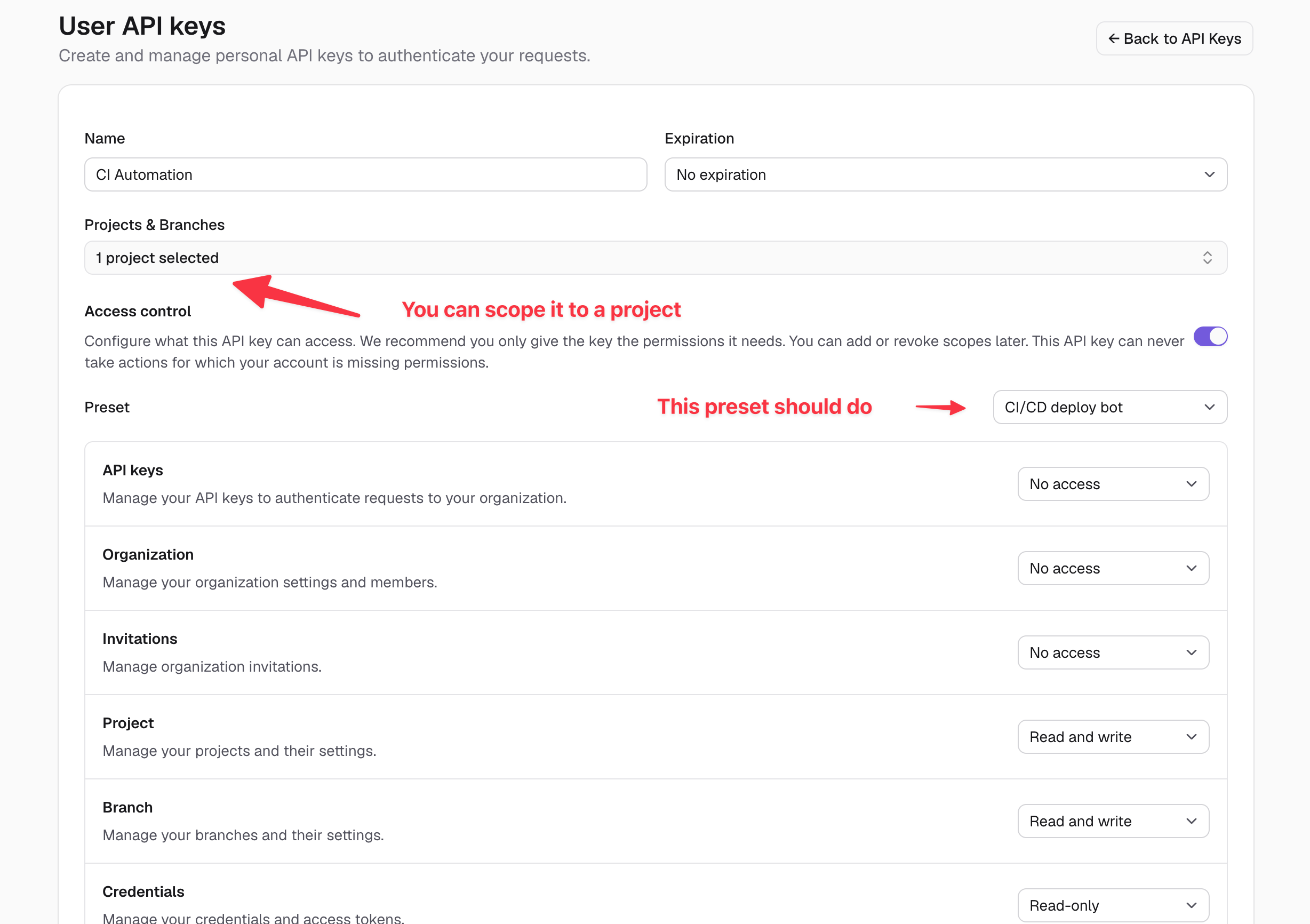

Xata user API key form scoped to one project with the CI/CD deploy bot preset selected See API keys for more information about project restrictions, scopes, and expiration.
Treat the API key like a password. Do not commit it to the repository or print it in build logs.

​
Configure Vercel environment variables

In the Vercel project, open Settings > Environment Variables and add these variables for the Preview environment: The Xata CLI automatically uses these standard environment variables for authentication and project selection. You do not need to install the CLI locally if you copy the organization and project IDs from a Console URL such as https://console.xata.io/organizations/<organization-id>/projects/<project-id>.
Add XATA_API_KEY to Vercel because the connection-string lookup runs in the Vercel build. If you use GitHub Actions to manage the branch lifecycle, also add the key as a GitHub Actions secret named XATA_API_KEY for that workflow.
For production, configure DATABASE_URL separately in Vercel’s Production environment. For example, get the primary connection string for the Xata production branch with:
The build script below only derives DATABASE_URL dynamically for preview deployments. Production deployments continue to use the value configured in Vercel.

​
Enable Vercel system environment variables

The script requires VERCEL_ENV and VERCEL_GIT_COMMIT_REF. Vercel provides both as system environment variables. In the Vercel project’s Environment Variables settings, select Enable access to System Environment Variables. VERCEL_GIT_COMMIT_REF contains the Git branch that triggered the deployment.

​
Add the build script

Create scripts/vercel-build.sh in your application repository:
Shell tracing (set -x) is intentionally disabled so the connection string is not written to Vercel build logs. The db:migrate command applies the application’s migrations to the preview branch. Remove that line if your application does not have a db:migrate script. The GitHub App does not recreate the Xata branch on every push. Keeping the branch for the lifetime of the pull request preserves its branch ID and connection URL. Xata does not currently provide a branch-reset operation; deleting and recreating the branch would give it a new ID and URL. The lookup fails if the matching Xata branch cannot be found. Do not add a fallback to the production connection string: a failed preview build is safer than a preview deployment that writes to production.
The .env.production line is specific to Next.js. If you use another framework, use its supported build-time mechanism to include DATABASE_URL in server-side deployment output. Never expose the connection string through a public or client-prefixed environment variable.
Add a script entry to package.json while keeping the existing build script unchanged:

​
Override the Vercel build command

In Vercel:
  1. Open the project and go to Settings > Build and Deployment.
  2. Under Framework Settings, enable Override for Build Command.
  3. Set the command to pnpm vercel-build.
  4. Save the settings and redeploy.
If your project uses npm, use npm run vercel-build instead.
Vercel may detect a vercel-build script automatically for some frameworks, but this behavior is not documented and may change. Set the Build Command explicitly in the Vercel project settings.

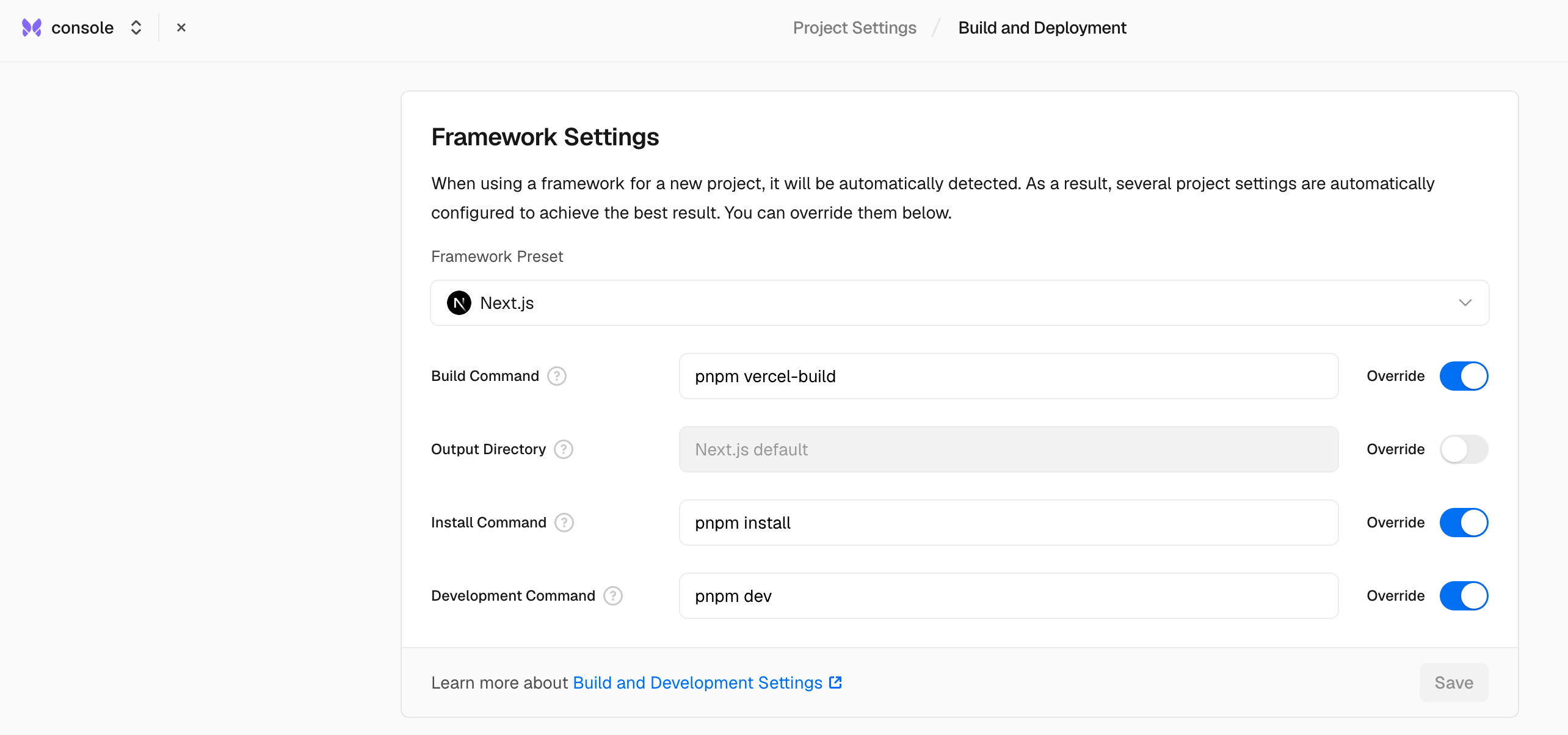

Vercel Framework Settings with the Build Command override set to pnpm vercel-build

​
Verify the integration

  1. Open a pull request in the linked GitHub repository.
  2. Wait for the Xata GitHub App’s pull request comment confirming that the preview branch was created.
  3. Redeploy the Vercel preview if its first build started before the Xata branch was created.
  4. Check the Vercel build log for the Xata branch name and a successful application build. The connection string itself should not appear in the log.
  5. Open the preview deployment and verify that it reads from or writes to the preview branch, not the production branch.

​
Troubleshooting

​
VERCEL_GIT_COMMIT_REF is not set

Select Enable access to System Environment Variables in the Vercel project’s environment variable settings, then redeploy.

​
The Xata branch cannot be found

The GitHub App creates a branch when a pull request is opened or reopened, while Vercel can build a Git branch before a pull request exists. Confirm that the GitHub App posted a successful branch-creation comment, then redeploy the Vercel preview. Also check that the same repository is linked to both projects and that your branch-lifecycle automation uses the expected naming convention.

​
The Xata CLI cannot authenticate or select a project

Confirm that XATA_API_KEY, XATA_ORGANIZATIONID, and XATA_PROJECTID are set for Vercel’s Preview environment. Make sure the API key is scoped to the linked Xata project, not only to its root branch.

​
The preview still connects to the production database

Confirm that your server-side application reads DATABASE_URL and that your framework includes the dynamically generated value in its deployment output. For Next.js, keep the .env.production step before next build.

​
A preview stops working after the pull request closes

This is expected. Closing the pull request causes the Xata GitHub App to delete its preview branch, so existing Vercel deployments for that pull request can no longer connect to it.

​
A pull request comes from a fork

Vercel protects environment variables for deployments from forks. An authorized project member must approve the deployment before it can access the Xata API key. Do not disable this protection for a project that contains secrets.
